Imported schema SA.xsd
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Properties
attribute form default unqualified
element form default qualified
version 1
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element AnnotationRef
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

The AnnotationRef element is a reference to an element derived
from the SA:CommonAnnotation element.

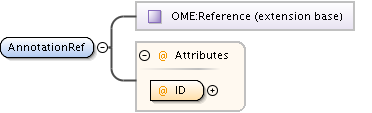

Diagram
Diagram ome_xsd.tmp#Reference SA_xsd.tmp#AnnotationRef_ID
Type extension of Reference
Type hierarchy
Properties
content complex
Used by
Attributes
QName Type Use
ID AnnotationID required
Source

<xsd:element name="AnnotationRef">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:documentation>The AnnotationRef element is a reference to an element derived from the SA:CommonAnnotation element.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="OME:Reference">
        <xsd:attribute name="ID" use="required" type="AnnotationID"/>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element StructuredAnnotations
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

An unordered collection of annotation attached to objects in the OME data model.

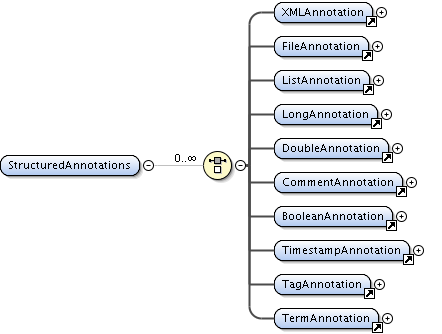

Diagram
Diagram SA_xsd.tmp#XMLAnnotation SA_xsd.tmp#FileAnnotation SA_xsd.tmp#ListAnnotation SA_xsd.tmp#LongAnnotation SA_xsd.tmp#DoubleAnnotation SA_xsd.tmp#CommentAnnotation SA_xsd.tmp#BooleanAnnotation SA_xsd.tmp#TimestampAnnotation SA_xsd.tmp#TagAnnotation SA_xsd.tmp#TermAnnotation
Properties
content complex
Used by
Element OME
Model
Children BooleanAnnotation, CommentAnnotation, DoubleAnnotation, FileAnnotation, ListAnnotation, LongAnnotation, TagAnnotation, TermAnnotation, TimestampAnnotation, XMLAnnotation
Instance

<StructuredAnnotations xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <XMLAnnotation Annotator="" ID="" Namespace="">{1,1}</XMLAnnotation>
  <FileAnnotation Annotator="" ID="" Namespace="">{1,1}</FileAnnotation>
  <ListAnnotation Annotator="" ID="" Namespace="">{1,1}</ListAnnotation>
  <LongAnnotation Annotator="" ID="" Namespace="">{1,1}</LongAnnotation>
  <DoubleAnnotation Annotator="" ID="" Namespace="">{1,1}</DoubleAnnotation>
  <CommentAnnotation Annotator="" ID="" Namespace="">{1,1}</CommentAnnotation>
  <BooleanAnnotation Annotator="" ID="" Namespace="">{1,1}</BooleanAnnotation>
  <TimestampAnnotation Annotator="" ID="" Namespace="">{1,1}</TimestampAnnotation>
  <TagAnnotation Annotator="" ID="" Namespace="">{1,1}</TagAnnotation>
  <TermAnnotation Annotator="" ID="" Namespace="">{1,1}</TermAnnotation>
</StructuredAnnotations>
Source

<xsd:element name="StructuredAnnotations">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:documentation>An unordered collection of annotation attached to objects in the OME data model.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:choice minOccurs="0" maxOccurs="unbounded">
      <xsd:element ref="XMLAnnotation" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="FileAnnotation" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="ListAnnotation" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="LongAnnotation" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="DoubleAnnotation" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="CommentAnnotation" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="BooleanAnnotation" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="TimestampAnnotation" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="TagAnnotation" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="TermAnnotation" minOccurs="1" maxOccurs="1"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element XMLAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

An general xml annotation. The contents of this is not processed as OME XML but should still be well-formed XML.
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation SA_xsd.tmp#TextAnnotation SA_xsd.tmp#XMLAnnotation_Value
Type extension of TextAnnotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Description, Value
Instance

<XMLAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
  <Value>{1,1}</Value>
</XMLAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="XMLAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>XMLAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>An general xml annotation. The contents of this is not processed as OME XML but should still be well-formed XML.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="TextAnnotation">
        <xsd:sequence>
          <xsd:element name="Value" minOccurs="1" maxOccurs="1">
            <xsd:complexType>
              <xsd:sequence>
                <xsd:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
              </xsd:sequence>
            </xsd:complexType>
          </xsd:element>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element Annotation / Description
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

A description for the annotation. [plane text multi-line string]
Diagram
Diagram
Type restriction of xsd:string
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
whiteSpace preserve
Source

<xsd:element name="Description" minOccurs="0" maxOccurs="1">
  <xsd:annotation>
    <xsd:documentation>A description for the annotation. [plane text multi-line string]</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:whiteSpace value="preserve"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element XMLAnnotation / Value
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Diagram
Diagram
Properties
content complex
minOccurs 1
maxOccurs 1
Model
ANY element from ANY namespace
Source

<xsd:element name="Value" minOccurs="1" maxOccurs="1">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element FileAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

A file object annotation

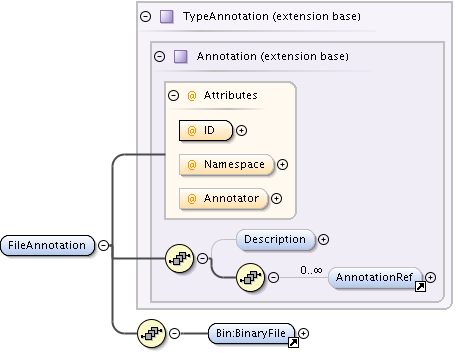

Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation SA_xsd.tmp#TypeAnnotation BinaryFile_xsd.tmp#BinaryFile
Type extension of TypeAnnotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Bin:BinaryFile, Description
Instance

<FileAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06" xmlns:Bin="http://www.openmicroscopy.org/Schemas/BinaryFile/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
  <Bin:BinaryFile FileName="" MIMEType="" Size="">{1,1}</Bin:BinaryFile>
</FileAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="FileAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>FileAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>A file object annotation</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="TypeAnnotation">
        <xsd:sequence>
          <xsd:element ref="Bin:BinaryFile" minOccurs="1" maxOccurs="1"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element ListAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

This annotation is a grouping object. It uses the sequence of
annotation refs from the base Annotation to form the list.

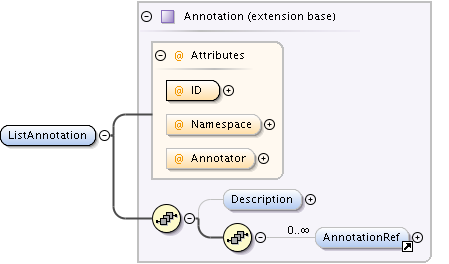

Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation
Type extension of Annotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Description
Instance

<ListAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
</ListAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="ListAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>ListAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>This annotation is a grouping object. It uses the sequence of annotation refs from the base Annotation to form the list.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="Annotation"/>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element LongAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

A simple numerical annotation of type xsd:long

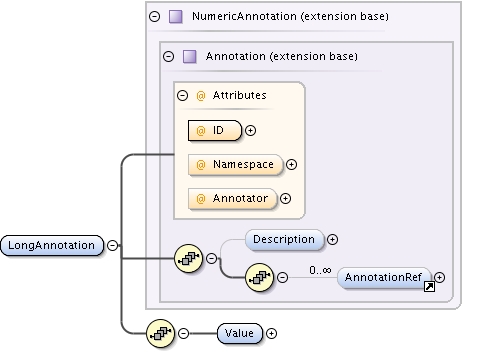

Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation SA_xsd.tmp#NumericAnnotation SA_xsd.tmp#LongAnnotation_Value
Type extension of NumericAnnotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Description, Value
Instance

<LongAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
  <Value>{1,1}</Value>
</LongAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="LongAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>LongAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>A simple numerical annotation of type xsd:long</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="NumericAnnotation">
        <xsd:sequence>
          <xsd:element name="Value" type="xsd:long" minOccurs="1" maxOccurs="1"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element LongAnnotation / Value
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Diagram
Diagram
Type xsd:long
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element name="Value" type="xsd:long" minOccurs="1" maxOccurs="1"/>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd

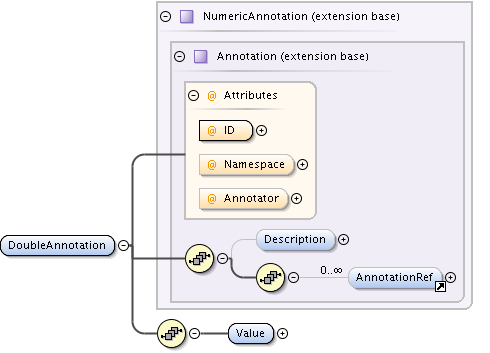

Element DoubleAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

A simple numerical annotation of type xsd:double
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation SA_xsd.tmp#NumericAnnotation SA_xsd.tmp#DoubleAnnotation_Value
Type extension of NumericAnnotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Description, Value
Instance

<DoubleAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
  <Value>{1,1}</Value>
</DoubleAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="DoubleAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>DoubleAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>A simple numerical annotation of type xsd:double</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="NumericAnnotation">
        <xsd:sequence>
          <xsd:element name="Value" type="xsd:double" minOccurs="1" maxOccurs="1"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element DoubleAnnotation / Value
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Diagram
Diagram
Type xsd:double
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element name="Value" type="xsd:double" minOccurs="1" maxOccurs="1"/>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd

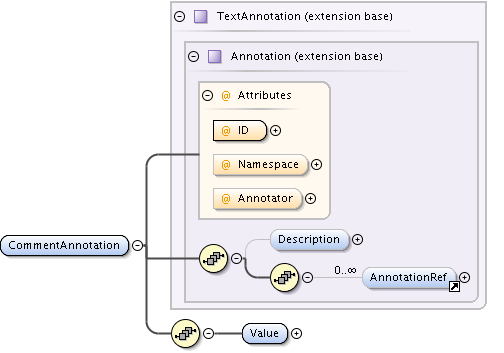

Element CommentAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

A simple comment annotation
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation SA_xsd.tmp#TextAnnotation SA_xsd.tmp#CommentAnnotation_Value
Type extension of TextAnnotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Description, Value
Instance

<CommentAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
  <Value>{1,1}</Value>
</CommentAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="CommentAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>CommentAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>A simple comment annotation</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="TextAnnotation">
        <xsd:sequence>
          <xsd:element name="Value" type="xsd:string" minOccurs="1" maxOccurs="1"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element CommentAnnotation / Value
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Diagram
Diagram
Type xsd:string
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element name="Value" type="xsd:string" minOccurs="1" maxOccurs="1"/>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element BooleanAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

A simple boolean annotation of type xsd:boolean
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation SA_xsd.tmp#BasicAnnotation SA_xsd.tmp#BooleanAnnotation_Value
Type extension of BasicAnnotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Description, Value
Instance

<BooleanAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
  <Value>{1,1}</Value>
</BooleanAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="BooleanAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>BooleanAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>A simple boolean annotation of type xsd:boolean</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="BasicAnnotation">
        <xsd:sequence>
          <xsd:element name="Value" type="xsd:boolean" minOccurs="1" maxOccurs="1"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element BooleanAnnotation / Value
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Diagram
Diagram
Type xsd:boolean
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element name="Value" type="xsd:boolean" minOccurs="1" maxOccurs="1"/>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd

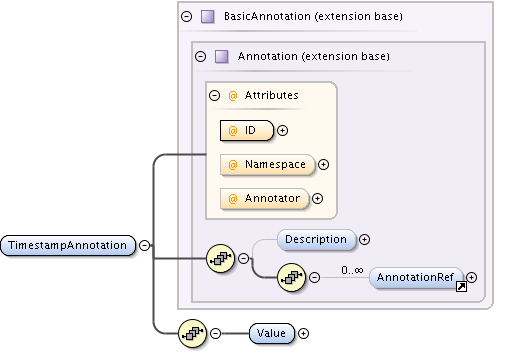

Element TimestampAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

A date/time annotation of type xsd:dateTime
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation SA_xsd.tmp#BasicAnnotation SA_xsd.tmp#TimestampAnnotation_Value
Type extension of BasicAnnotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Description, Value
Instance

<TimestampAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
  <Value>{1,1}</Value>
</TimestampAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="TimestampAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>TimestampAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>A date/time annotation of type xsd:dateTime</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="BasicAnnotation">
        <xsd:sequence>
          <xsd:element name="Value" type="xsd:dateTime" minOccurs="1" maxOccurs="1"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element TimestampAnnotation / Value
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Diagram
Diagram
Type xsd:dateTime
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element name="Value" type="xsd:dateTime" minOccurs="1" maxOccurs="1"/>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element TagAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

A tag annotation (represents a tag or a tagset)
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation SA_xsd.tmp#TextAnnotation SA_xsd.tmp#TagAnnotation_Value
Type extension of TextAnnotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Description, Value
Instance

<TagAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
  <Value>{1,1}</Value>
</TagAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="TagAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>TagAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>A tag annotation (represents a tag or a tagset)</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="TextAnnotation">
        <xsd:sequence>
          <xsd:element name="Value" type="xsd:string" minOccurs="1" maxOccurs="1"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element TagAnnotation / Value
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Diagram
Diagram
Type xsd:string
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element name="Value" type="xsd:string" minOccurs="1" maxOccurs="1"/>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd

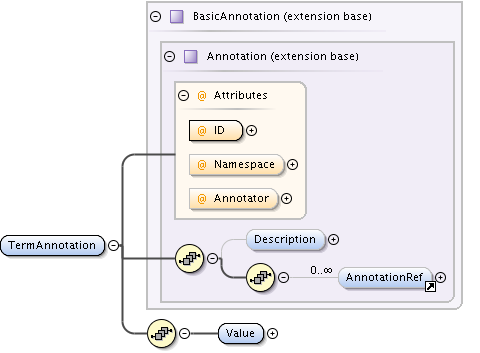

Element TermAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

A ontology term annotation
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation SA_xsd.tmp#BasicAnnotation SA_xsd.tmp#TermAnnotation_Value
Type extension of BasicAnnotation
Type hierarchy
Properties
content complex
Used by
Model
Children AnnotationRef, Description, Value
Instance

<TermAnnotation Annotator="" ID="" Namespace="" xmlns="http://www.openmicroscopy.org/Schemas/SA/2013-06">
  <Description>{0,1}</Description>
  <AnnotationRef ID="">{0,unbounded}</AnnotationRef>
  <Value>{1,1}</Value>
</TermAnnotation>
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:element name="TermAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>TermAnnotations</plural>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>A ontology term annotation</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="BasicAnnotation">
        <xsd:sequence>
          <xsd:element name="Value" type="xsd:string" minOccurs="1" maxOccurs="1"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Element TermAnnotation / Value
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Diagram
Diagram
Type xsd:string
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element name="Value" type="xsd:string" minOccurs="1" maxOccurs="1"/>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Simple Type AnnotationID
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Diagram
Diagram ome_xsd.tmp#LSID
Type restriction of LSID
Type hierarchy
Facets
pattern ((urn:lsid:([\w\-\.]+\.[\w\-\.]+)+:\S+:\S+)|(\S+:\S+)) & ((urn:lsid:([\w\-\.]+\.[\w\-\.]+)+:Annotation:\S+)|(Annotation:\S+))
Used by
Source

<xsd:simpleType name="AnnotationID">
  <xsd:restriction base="OME:LSID">
    <xsd:pattern value="(urn:lsid:([\w\-\.]+\.[\w\-\.]+)+:Annotation:\S+)|(Annotation:\S+)"/>
  </xsd:restriction>
</xsd:simpleType>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Complex Type TextAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

An abstract Text Annotation from which some others are derived.
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation
Type extension of Annotation
Type hierarchy
Used by
Model
Children AnnotationRef, Description
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:complexType name="TextAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>TextAnnotations</plural>
        <abstract/>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>An abstract Text Annotation from which some others are derived.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="Annotation"/>
  </xsd:complexContent>
</xsd:complexType>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd

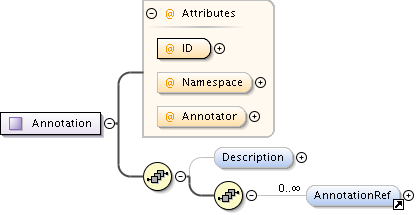

Complex Type Annotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

An annotation from which all others are ultimately derived.
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef
Used by
Model
Children AnnotationRef, Description
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:complexType name="Annotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>Annotations</plural>
        <abstract/>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>An annotation from which all others are ultimately derived.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Description" minOccurs="0" maxOccurs="1">
      <xsd:annotation>
        <xsd:documentation>A description for the annotation. [plane text multi-line string]</xsd:documentation>
      </xsd:annotation>
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:whiteSpace value="preserve"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:element>
    <xsd:sequence>
      <xsd:element ref="AnnotationRef" minOccurs="0" maxOccurs="unbounded">
        <xsd:annotation>
          <xsd:appinfo>
            <xsdfu>
              <manytomany/>
            </xsdfu>
          </xsd:appinfo>
        </xsd:annotation>
      </xsd:element>
    </xsd:sequence>
  </xsd:sequence>
  <xsd:attribute name="ID" use="required" type="AnnotationID"/>
  <xsd:attribute name="Namespace" use="optional" type="xsd:anyURI">
    <xsd:annotation>
      <xsd:documentation>We recommend the inclusion of a namespace for annotations you define. If it is absent then we assume the annotation is to use our (OME's) default interpretation for this type.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
  <xsd:attribute name="Annotator" use="optional" type="OME:ExperimenterID">
    <xsd:annotation>
      <xsd:documentation>The Annotator is the person who attached this annotation. e.g. If UserA annotates something with TagB, owned by UserB, UserA is still the Annotator.</xsd:documentation>
    </xsd:annotation>
  </xsd:attribute>
</xsd:complexType>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Complex Type TypeAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

An abstract Type Annotation from which some others are derived.
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation
Type extension of Annotation
Type hierarchy
Used by
Element FileAnnotation
Model
Children AnnotationRef, Description
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:complexType name="TypeAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>TypeAnnotations</plural>
        <abstract/>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>An abstract Type Annotation from which some others are derived.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="Annotation"/>
  </xsd:complexContent>
</xsd:complexType>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Complex Type NumericAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

An abstract Numeric Annotation from which some others are derived.
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation
Type extension of Annotation
Type hierarchy
Used by
Model
Children AnnotationRef, Description
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:complexType name="NumericAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>NumericAnnotations</plural>
        <abstract/>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>An abstract Numeric Annotation from which some others are derived.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="Annotation"/>
  </xsd:complexContent>
</xsd:complexType>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd

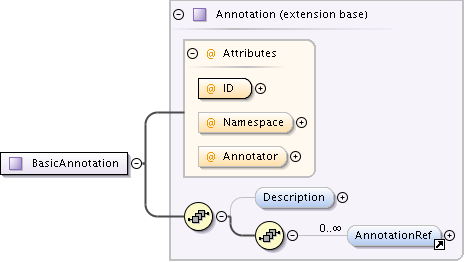

Complex Type BasicAnnotation
Namespace http://www.openmicroscopy.org/Schemas/SA/2013-06
Annotations

An abstract Basic Annotation from which some others are derived.
Diagram
Diagram SA_xsd.tmp#Annotation_ID SA_xsd.tmp#Annotation_Namespace SA_xsd.tmp#Annotation_Annotator SA_xsd.tmp#Annotation_Description SA_xsd.tmp#AnnotationRef SA_xsd.tmp#Annotation
Type extension of Annotation
Type hierarchy
Used by
Model
Children AnnotationRef, Description
Attributes
QName Type Use Annotation
Annotator ExperimenterID optional
The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
ID AnnotationID required
Namespace xsd:anyURI optional
We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Source

<xsd:complexType name="BasicAnnotation">
  <!-- top level definition -->
  <xsd:annotation>
    <xsd:appinfo>
      <xsdfu>
        <plural>BasicAnnotations</plural>
        <abstract/>
      </xsdfu>
    </xsd:appinfo>
    <xsd:documentation>An abstract Basic Annotation from which some others are derived.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="Annotation"/>
  </xsd:complexContent>
</xsd:complexType>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Attribute AnnotationRef / @ID
Namespace No namespace
Type AnnotationID
Type hierarchy
Properties
use required
Facets
pattern ((urn:lsid:([\w\-\.]+\.[\w\-\.]+)+:\S+:\S+)|(\S+:\S+)) & ((urn:lsid:([\w\-\.]+\.[\w\-\.]+)+:Annotation:\S+)|(Annotation:\S+))
Used by
Element AnnotationRef
Source

<xsd:attribute name="ID" use="required" type="AnnotationID"/>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Attribute Annotation / @ID
Namespace No namespace
Type AnnotationID
Type hierarchy
Properties
use required
Facets
pattern ((urn:lsid:([\w\-\.]+\.[\w\-\.]+)+:\S+:\S+)|(\S+:\S+)) & ((urn:lsid:([\w\-\.]+\.[\w\-\.]+)+:Annotation:\S+)|(Annotation:\S+))
Used by
Complex Type Annotation
Source

<xsd:attribute name="ID" use="required" type="AnnotationID"/>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Attribute Annotation / @Namespace
Namespace No namespace
Annotations

We recommend the inclusion of a namespace for annotations you
define. If it is absent then we assume the annotation is to
use our (OME's) default interpretation for this type.
Type xsd:anyURI
Properties
use optional
Used by
Complex Type Annotation
Source

<xsd:attribute name="Namespace" use="optional" type="xsd:anyURI">
  <xsd:annotation>
    <xsd:documentation>We recommend the inclusion of a namespace for annotations you define. If it is absent then we assume the annotation is to use our (OME's) default interpretation for this type.</xsd:documentation>
  </xsd:annotation>
</xsd:attribute>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
Attribute Annotation / @Annotator
Namespace No namespace
Annotations

The Annotator is the person who attached this annotation.
e.g. If UserA annotates something with TagB, owned by UserB,
	UserA is still the Annotator.
Type ExperimenterID
Type hierarchy
Properties
use optional
Facets
pattern ((urn:lsid:([\w\-\.]+\.[\w\-\.]+)+:\S+:\S+)|(\S+:\S+)) & ((urn:lsid:([\w\-\.]+\.[\w\-\.]+)+:Experimenter:\S+)|(Experimenter:\S+))
Used by
Complex Type Annotation
Source

<xsd:attribute name="Annotator" use="optional" type="OME:ExperimenterID">
  <xsd:annotation>
    <xsd:documentation>The Annotator is the person who attached this annotation. e.g. If UserA annotates something with TagB, owned by UserB, UserA is still the Annotator.</xsd:documentation>
  </xsd:annotation>
</xsd:attribute>
Schema location http://www.openmicroscopy.org/Schemas/SA/2013-06/SA.xsd
XML Schema documentation generated by ® XML Editor.
